BESORA HNOS S.R.L.
Rollers for conveyor belts
The rollers, designed and built according to quality standards, allow for long life even under extreme conditions (minerals, cereals, aggregates, etc.).
Their labyrinth and seal system restricts the entry of contaminants and protects the main components to keep them intact.
Standardized parts and assemblies allow for timely, quality-based supply, according to the user’s demands and convenience.
Measurements:
They are available in standard measurements as well as special measurements.
Construction:

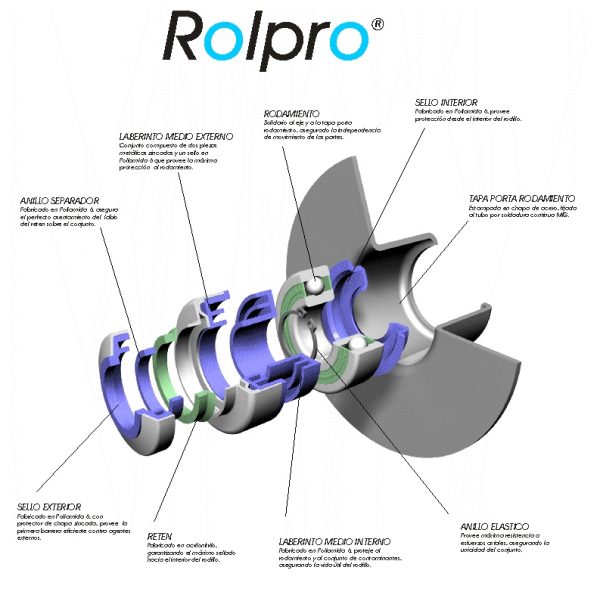

Machined tube ends; pressed caps, fixed by automated continuous welding; and injected labyrinths in Nylon 6; all construction features that guarantee excellent operation, minimum maintenance and long life.
Diameter (1) | 3,5″ – 4″ – 5″ | ||
Bearing (2) | 6204-6205-6206-6305/ZKL-2RS | ||
Primary Seal | Vring (Rubber with D. Molybd.) | ||
Secondary Seal | Nylon 6 Maze | ||
Inner Seal | Nylon 6 | ||
Lubrication | Lithium base grease |
(1) Special sizes, according to requirements.
(2) Other brands, optional.
